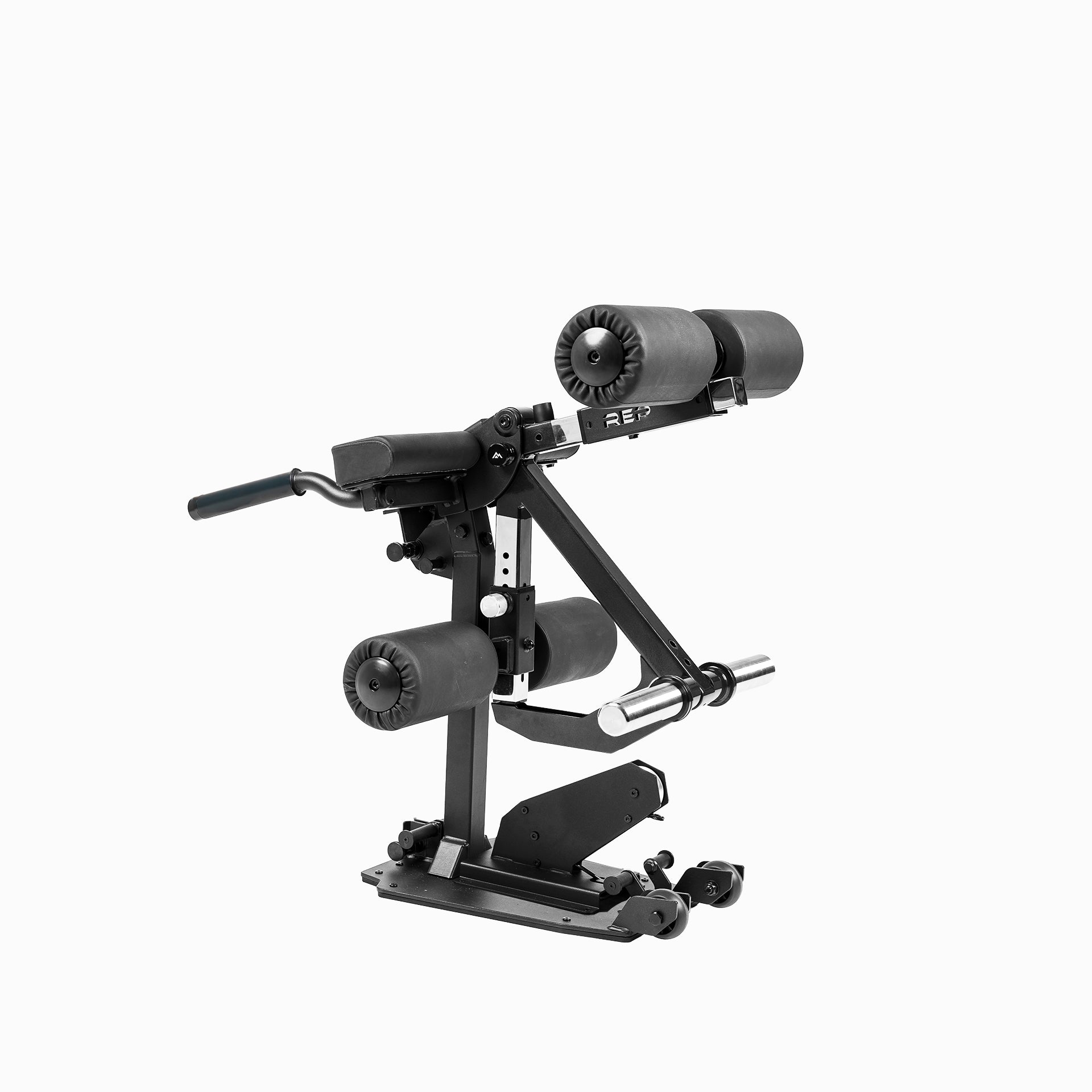

Leg Extension & Leg Curl Bench Attachment

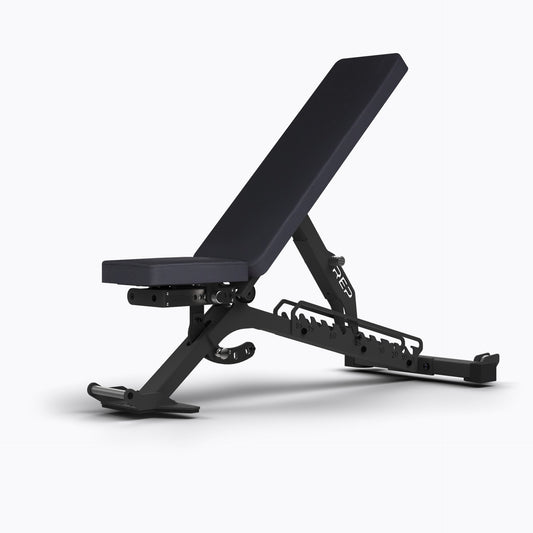

The Leg Extension & Leg Curl Bench Attachment is compatible with the REP® Nighthawk™ - Adjustable Bench,

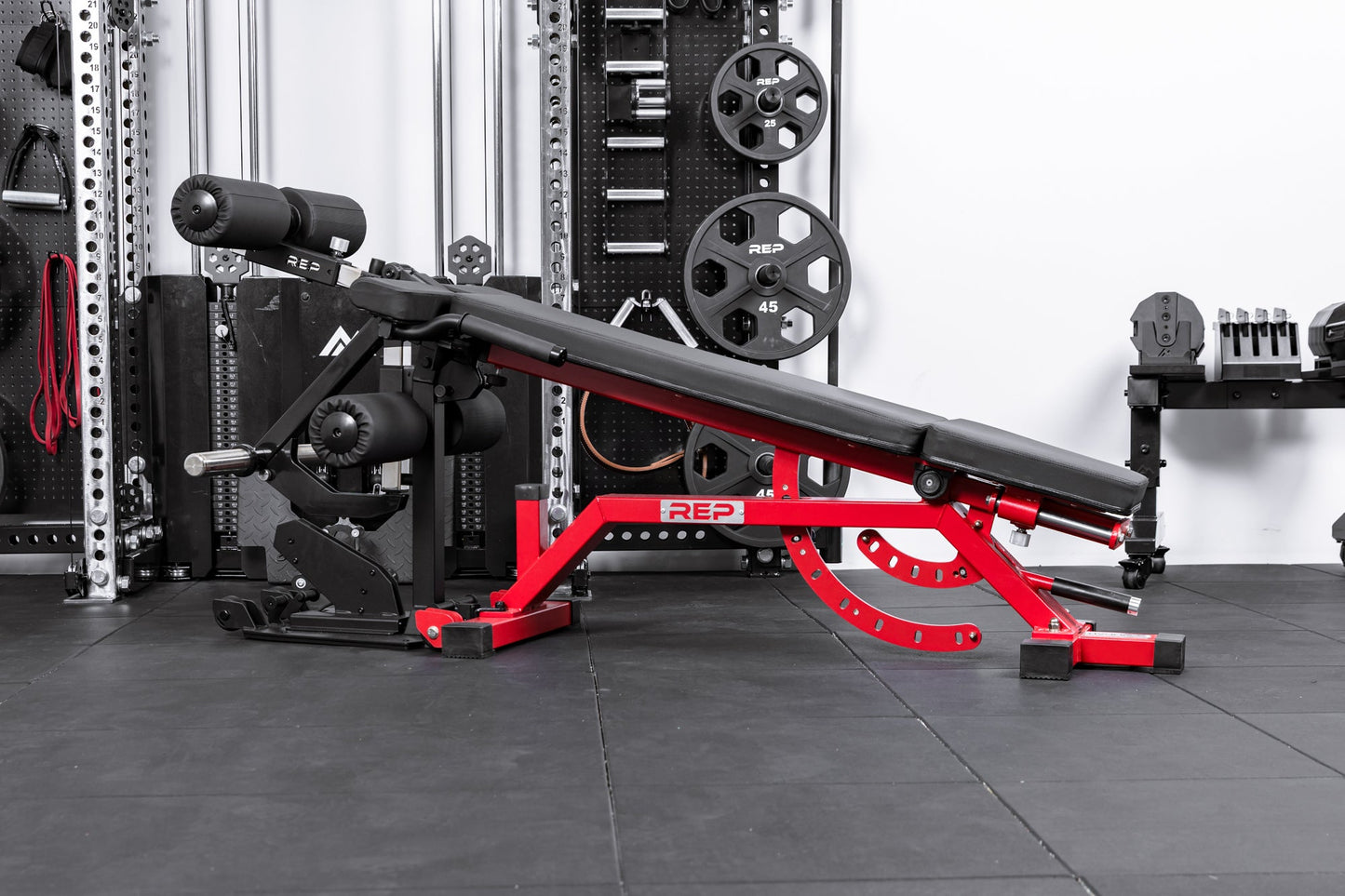

BlackWing™ Adjustable Bench, and ZeroGap® - AB-5000 Adjustable Bench with both the standard and wide bench pads.

Resistance Options

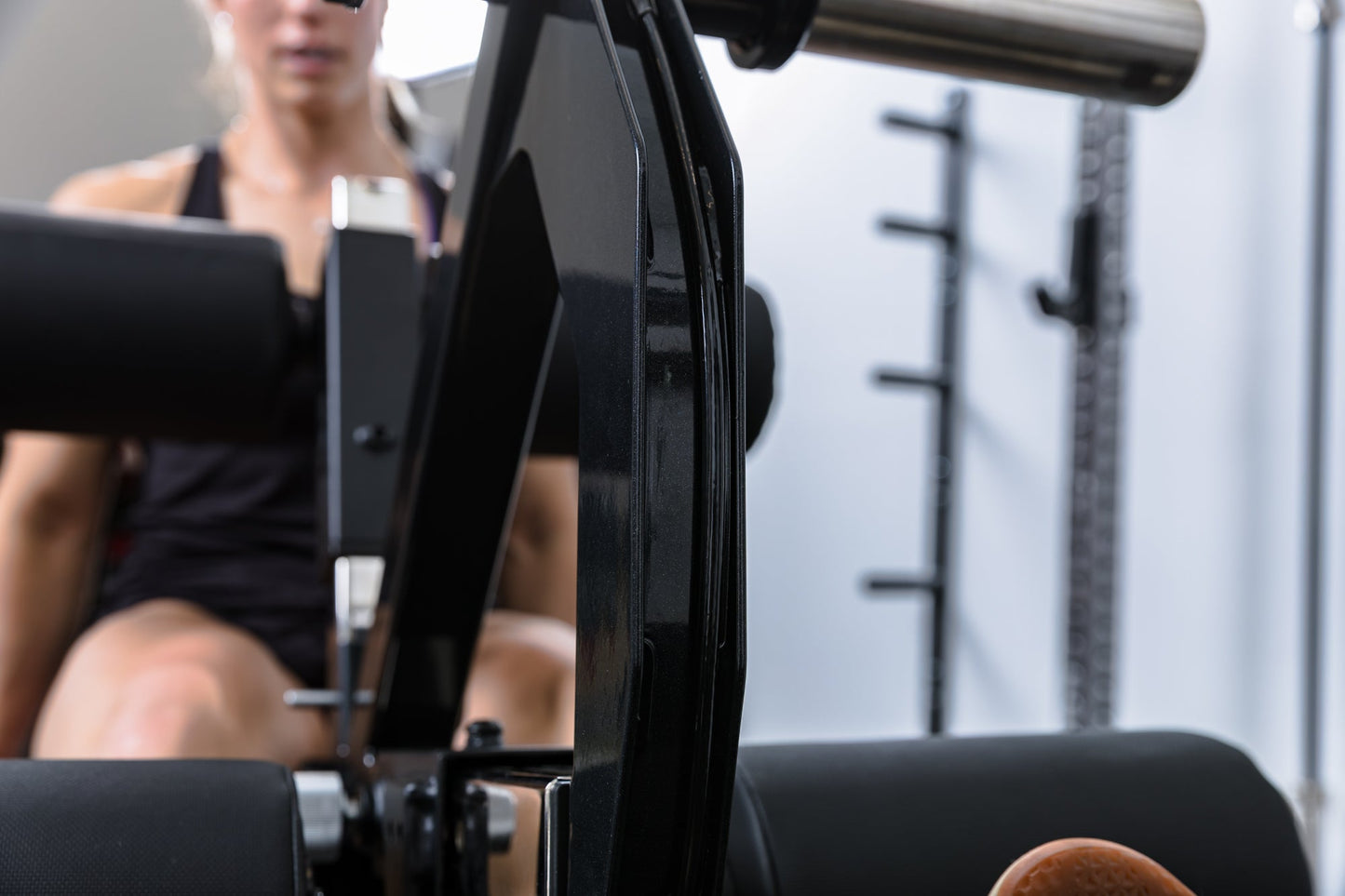

REP x Dialed Motion attachment: Only sectorized cable resistance with the built-in cable retractor.

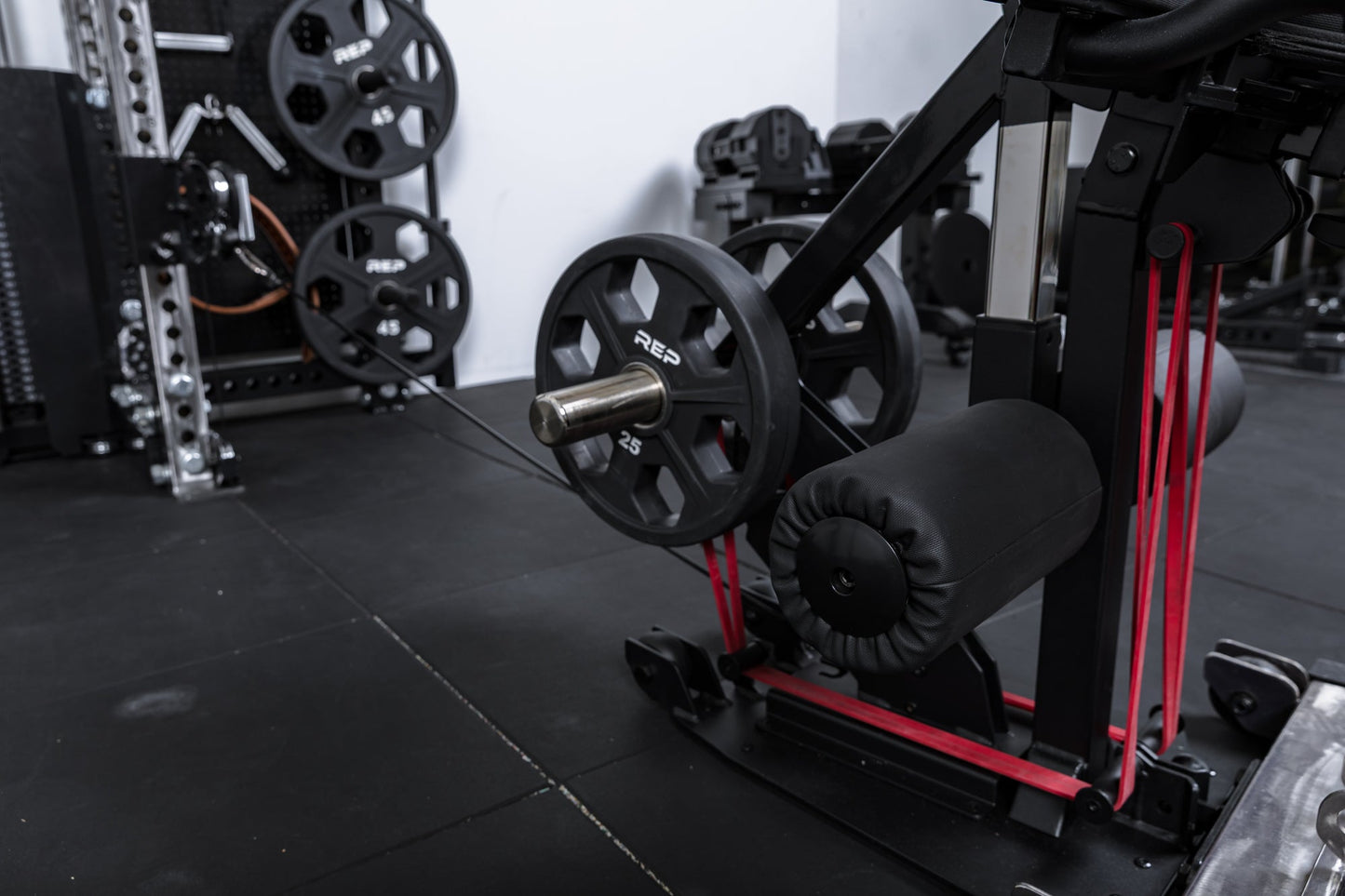

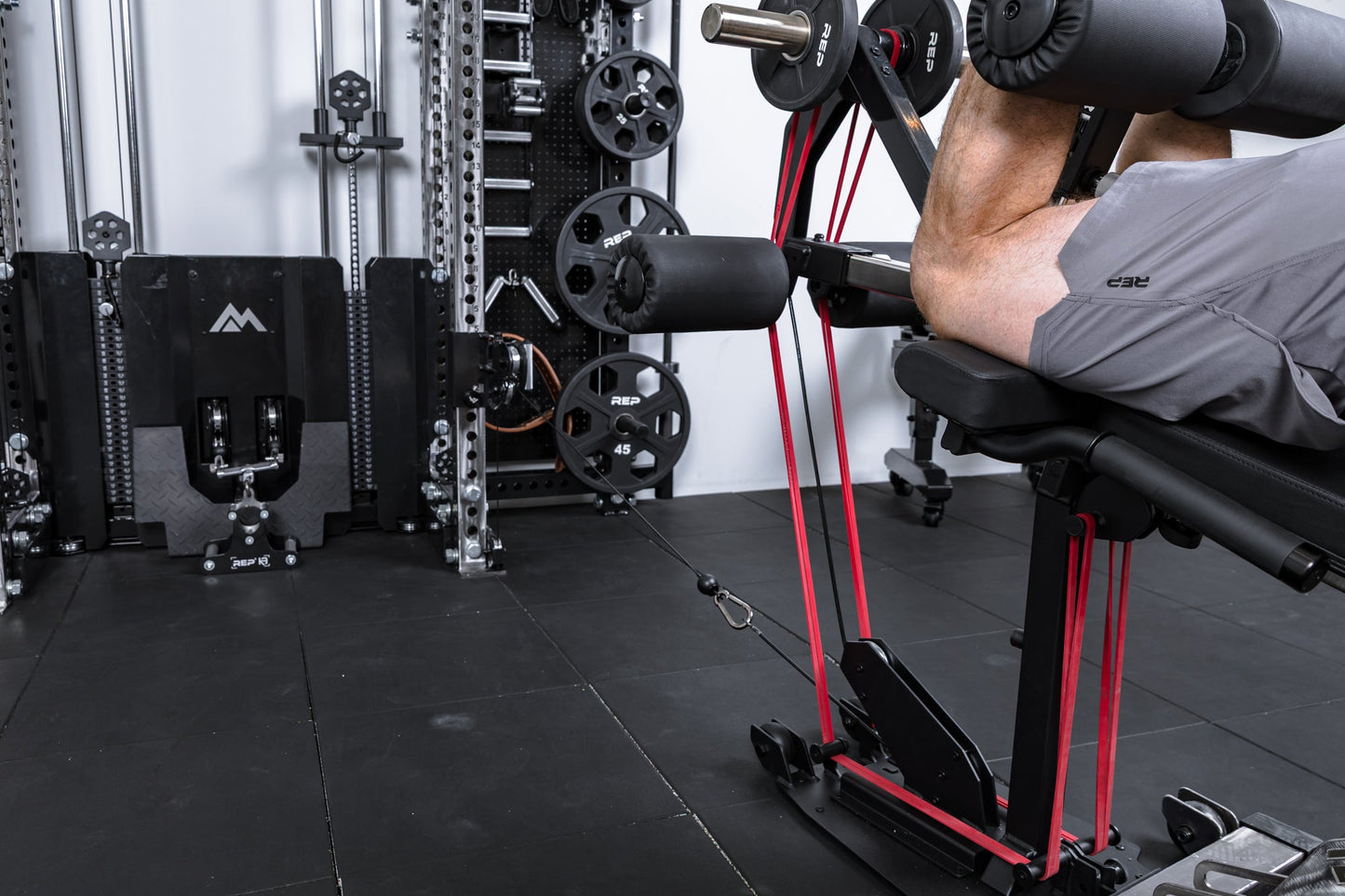

REP variant: Three resistance options (plate loaded, resistance bands, cable). Users can choose to mix and match or use all three at once for the REP variant.

Exercises

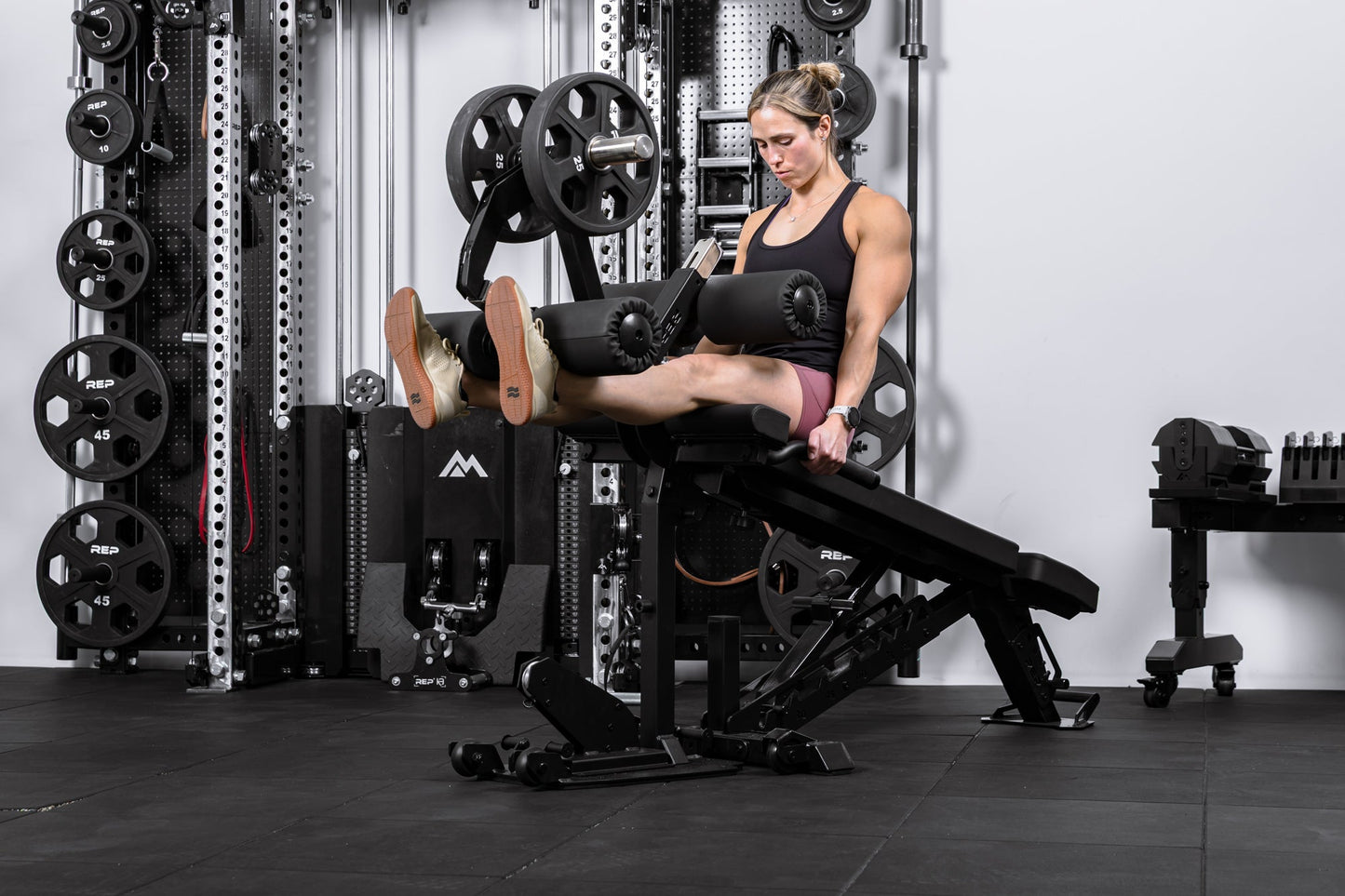

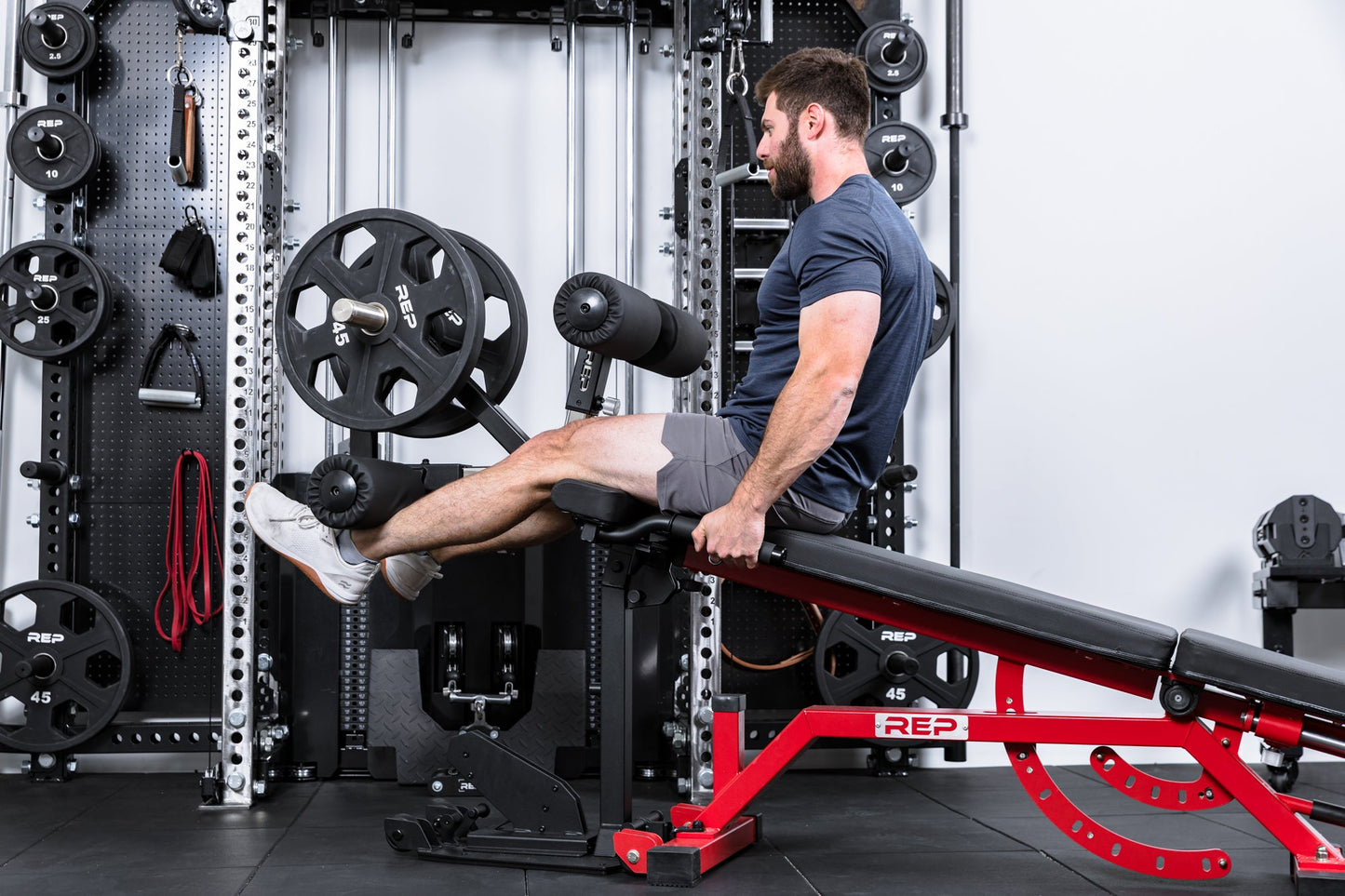

REP x Dialed Motion attachment: 3 lower body movements (leg extensions, prone leg curls, as well as seated leg curls)

REP variant: 2 lower body movements (leg extension and prone leg curl)

Storage

REP x Dialed Motion attachment: Not free standing and requires a rack mount or wall mount storage holder when not in use.

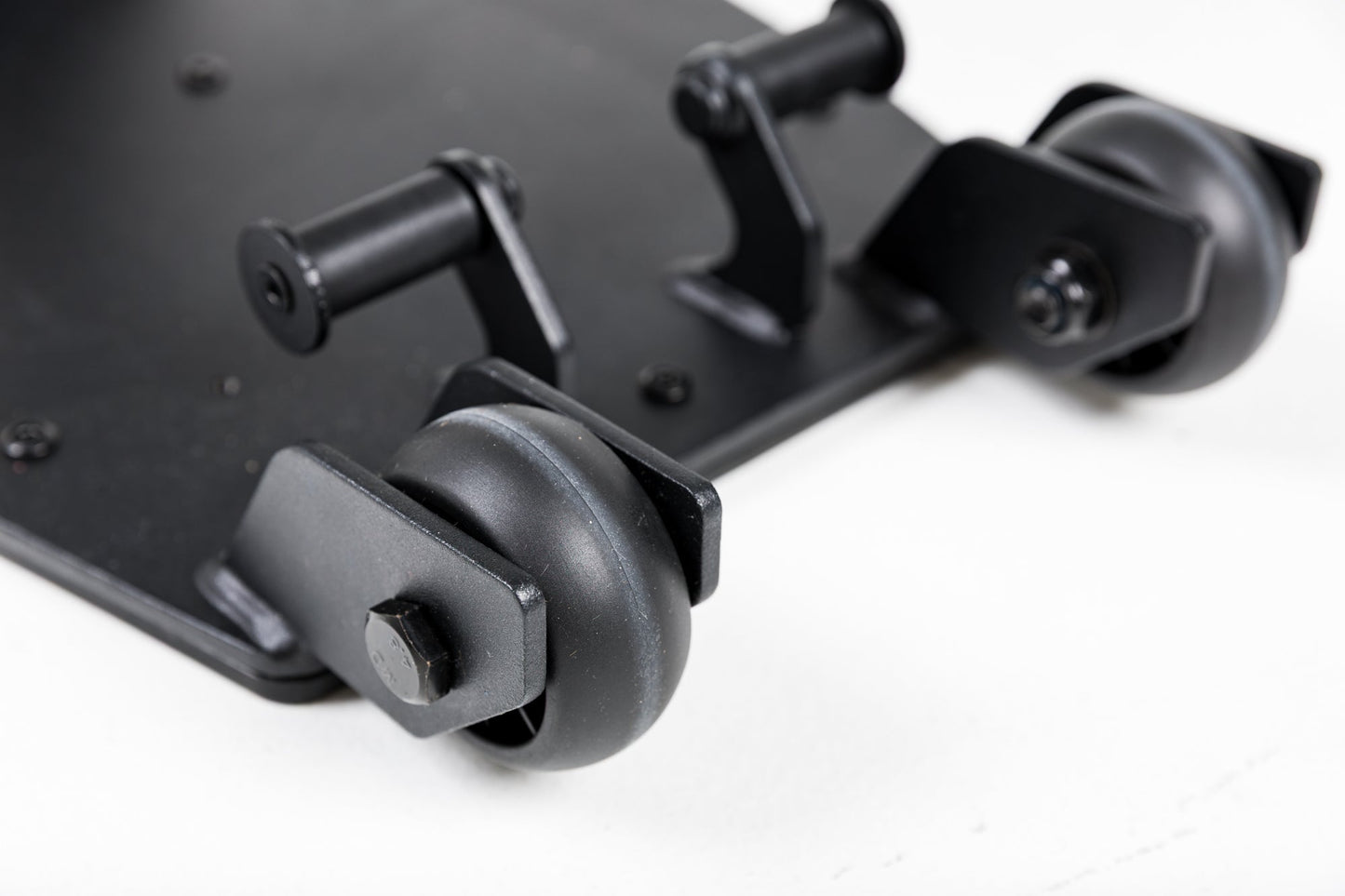

REP variant: Equipped with a wheeled base for maneuverability and free-standing storage.

Compatibility
REP x Dialed Motion attachment: Will be compatible with additional benches on the market (final list TBD).
REP variant: Compatible with the REP® Nighthawk™ - Adjustable Bench, BlackWing™ Adjustable Bench, and ZeroGap® - AB-5000 Adjustable Bench with both the standard and wide bench pads.

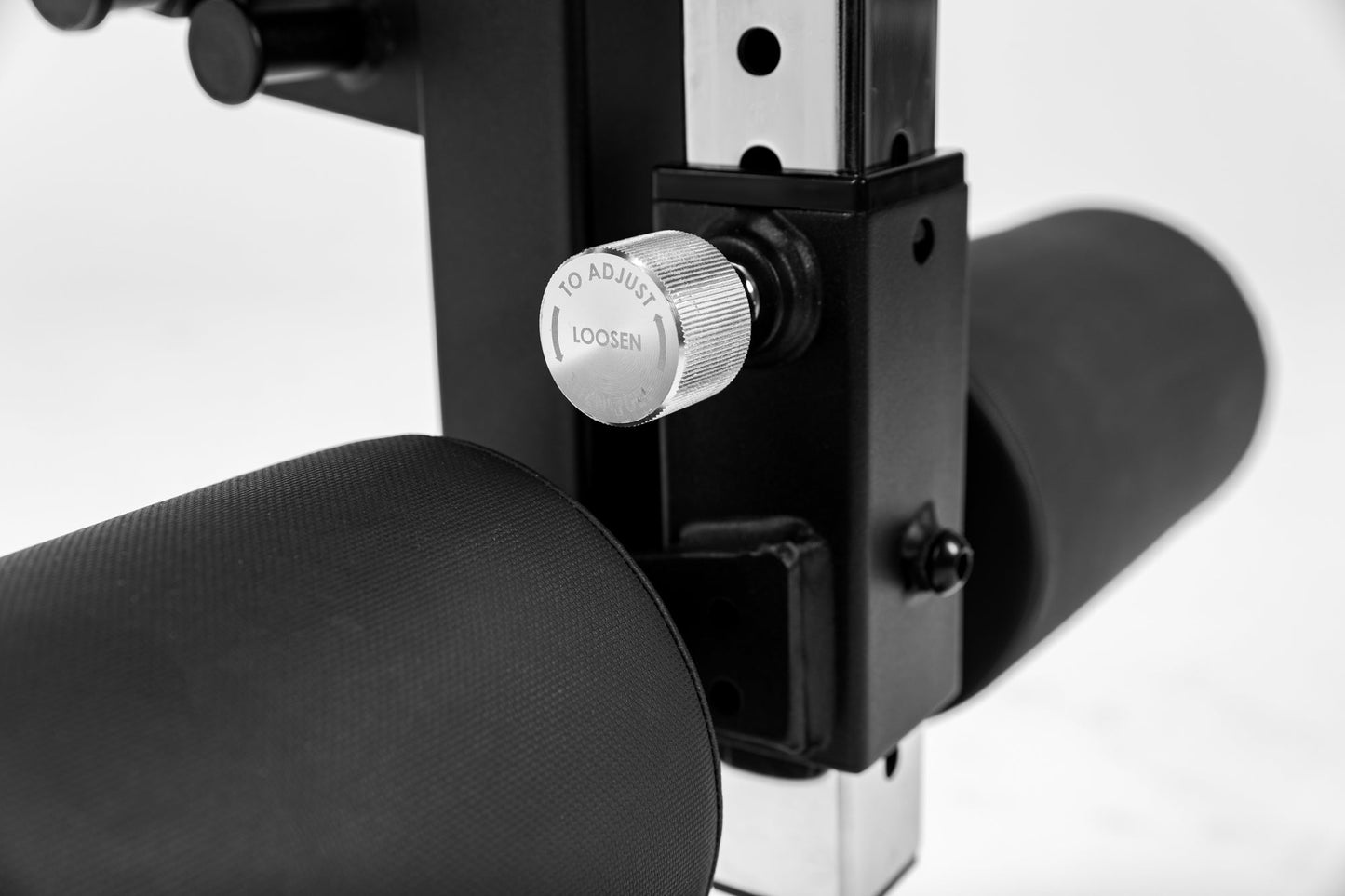

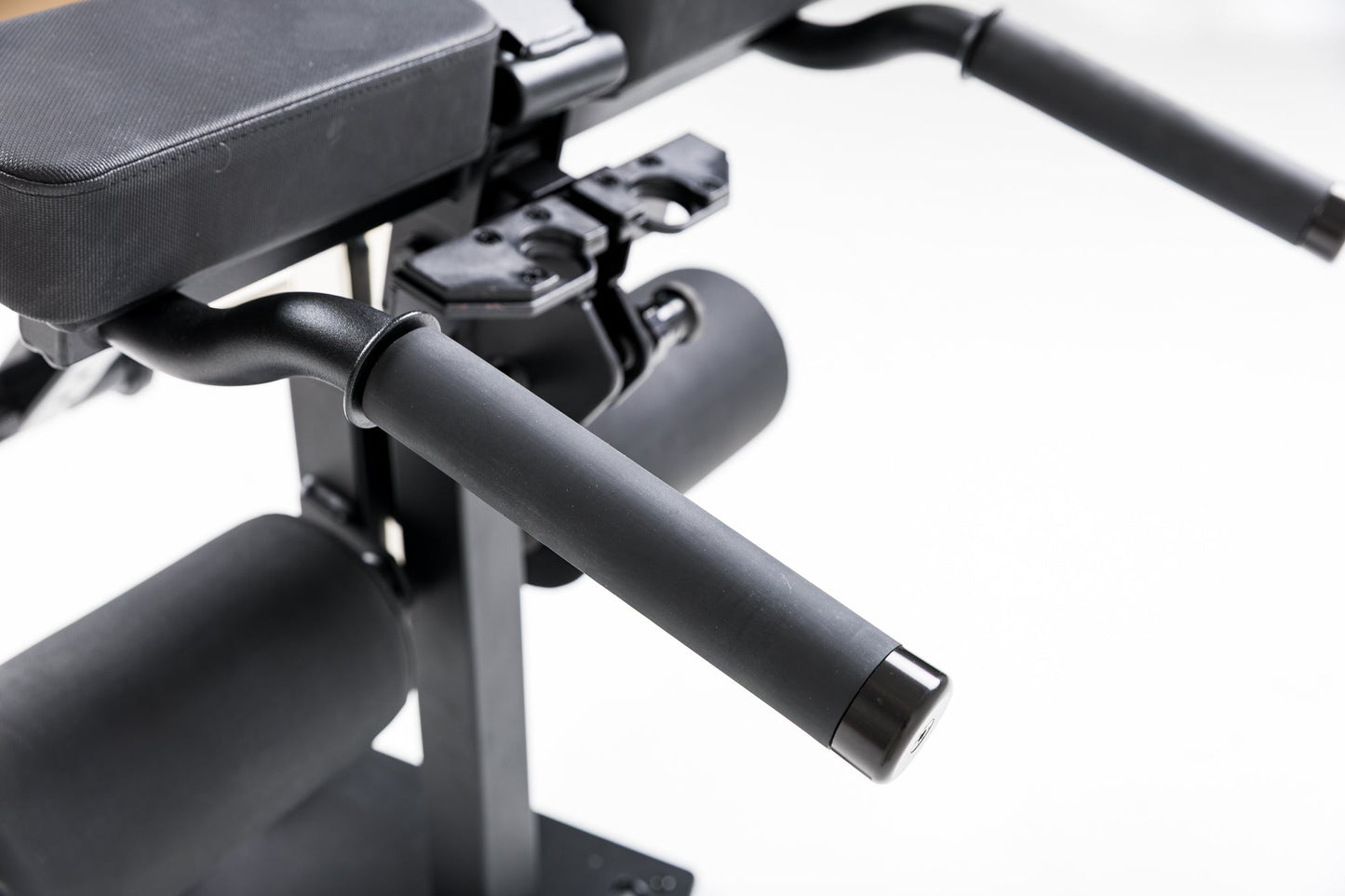

Adjustable Handles
REP x Dialed Motion attachment: Has adjustable knurled handles that can be set based on the desired exercise (final positions TBD).

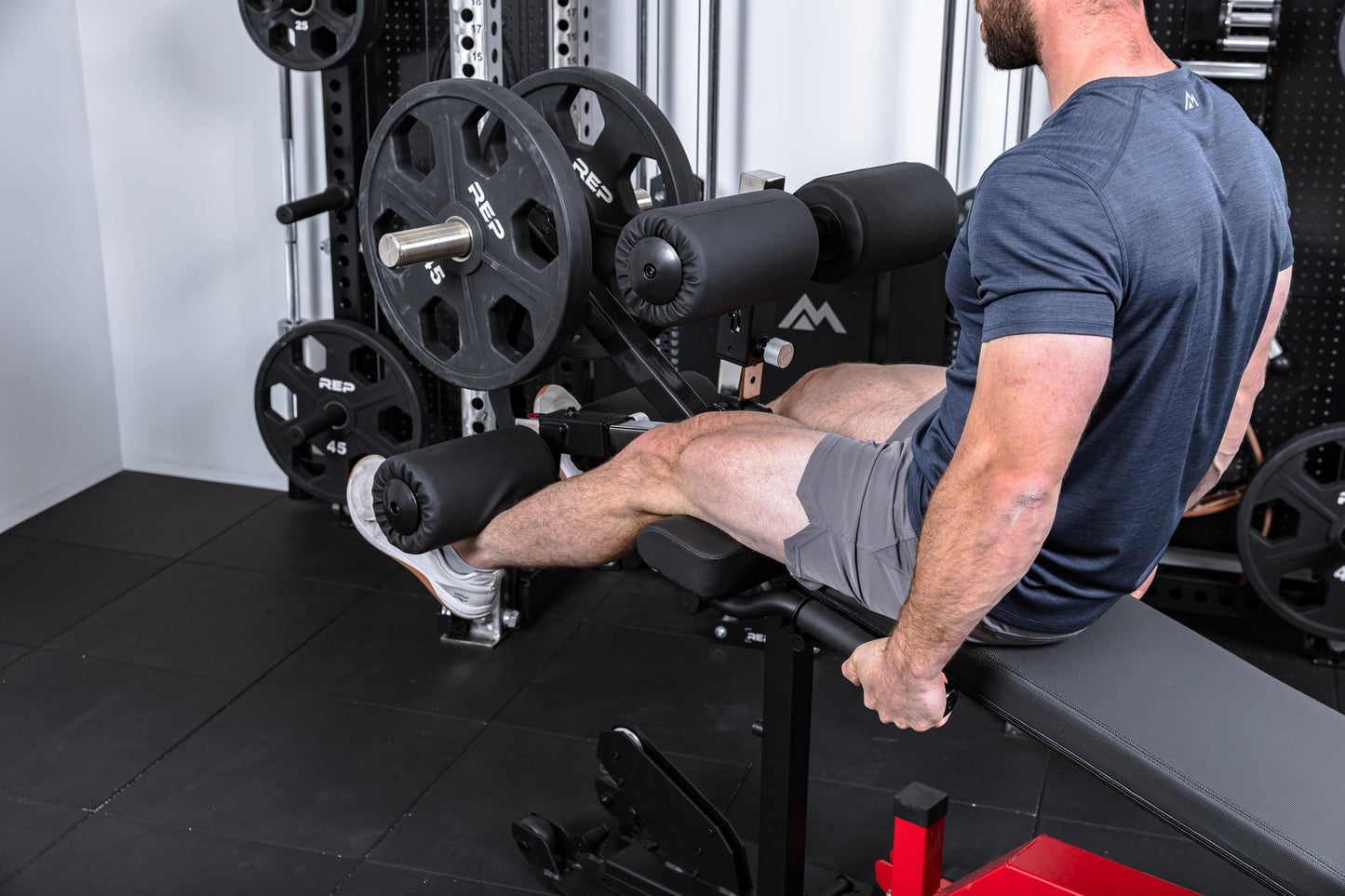

REP variant: Has fixed rubber coated handles.

No, these benches are not compatible.

We cannot guarantee compatibility due to machining/manufacturing differences between companies.

No, this attachment cannot be used as a freestanding leg extension/leg curl machine.

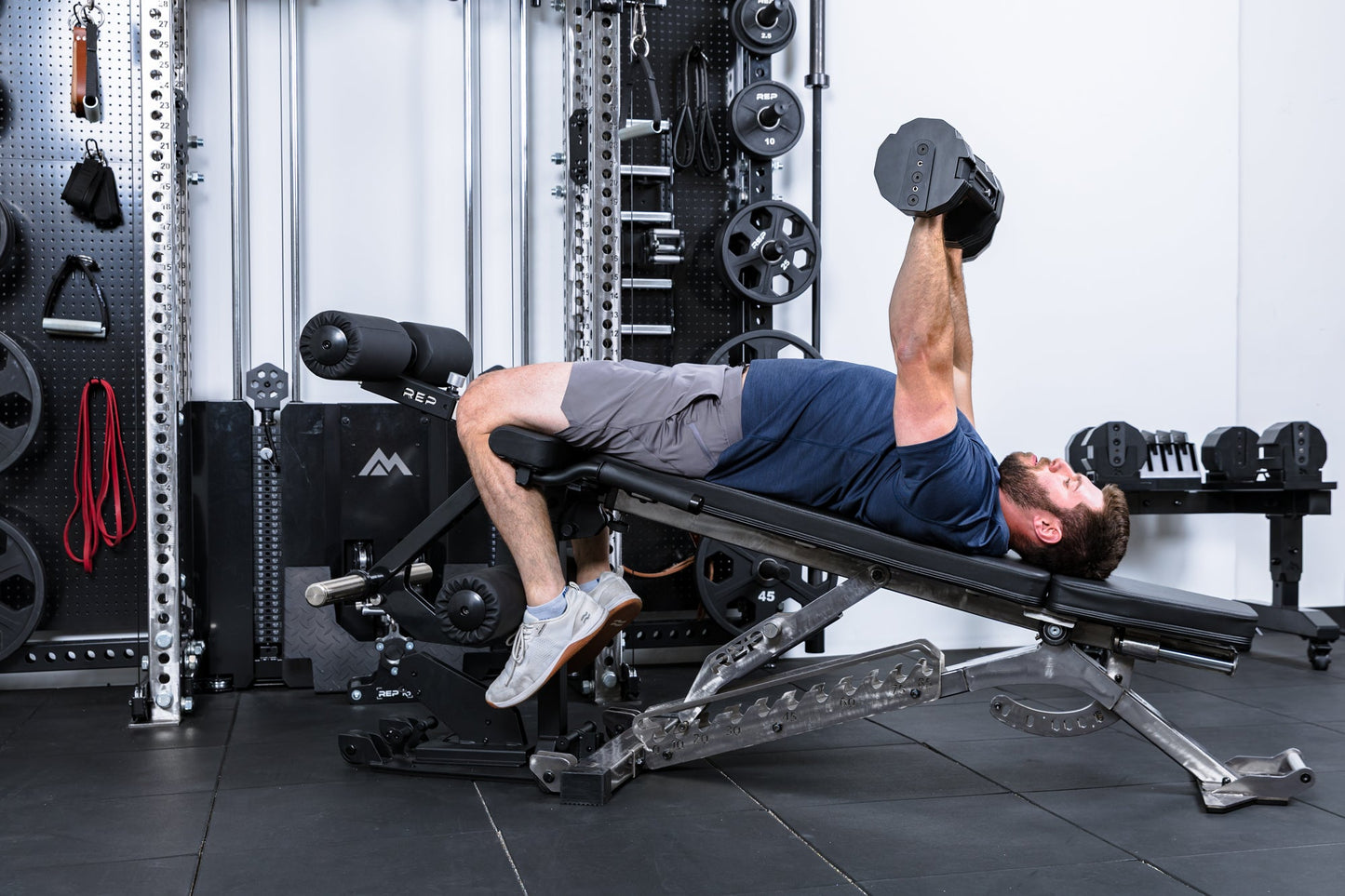

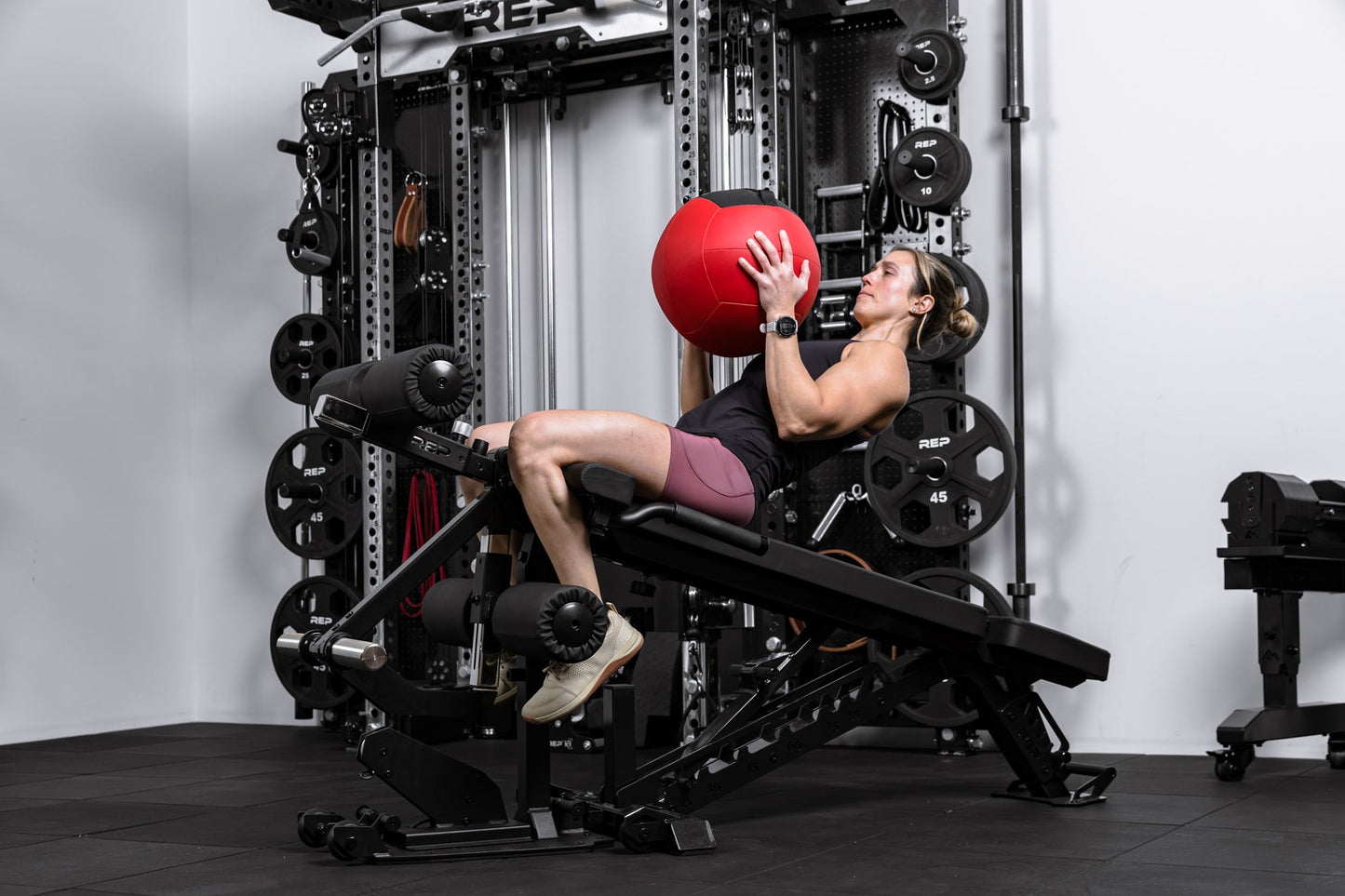

You can perform leg extension and leg curl variations, decline sit-ups, and decline bench.

The bench decline angle is 15 degrees.

Yes, only one person is needed for installation. Unboxing and product assembly is estimated to take 1-2 hours. All the tools you need will be included.

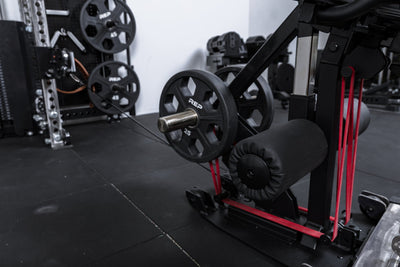

The total weight capacity of the attachment is 250lbs. You can combine all three resistance options if they do not exceed 250lbs. The starting weight is 12.7lbs.

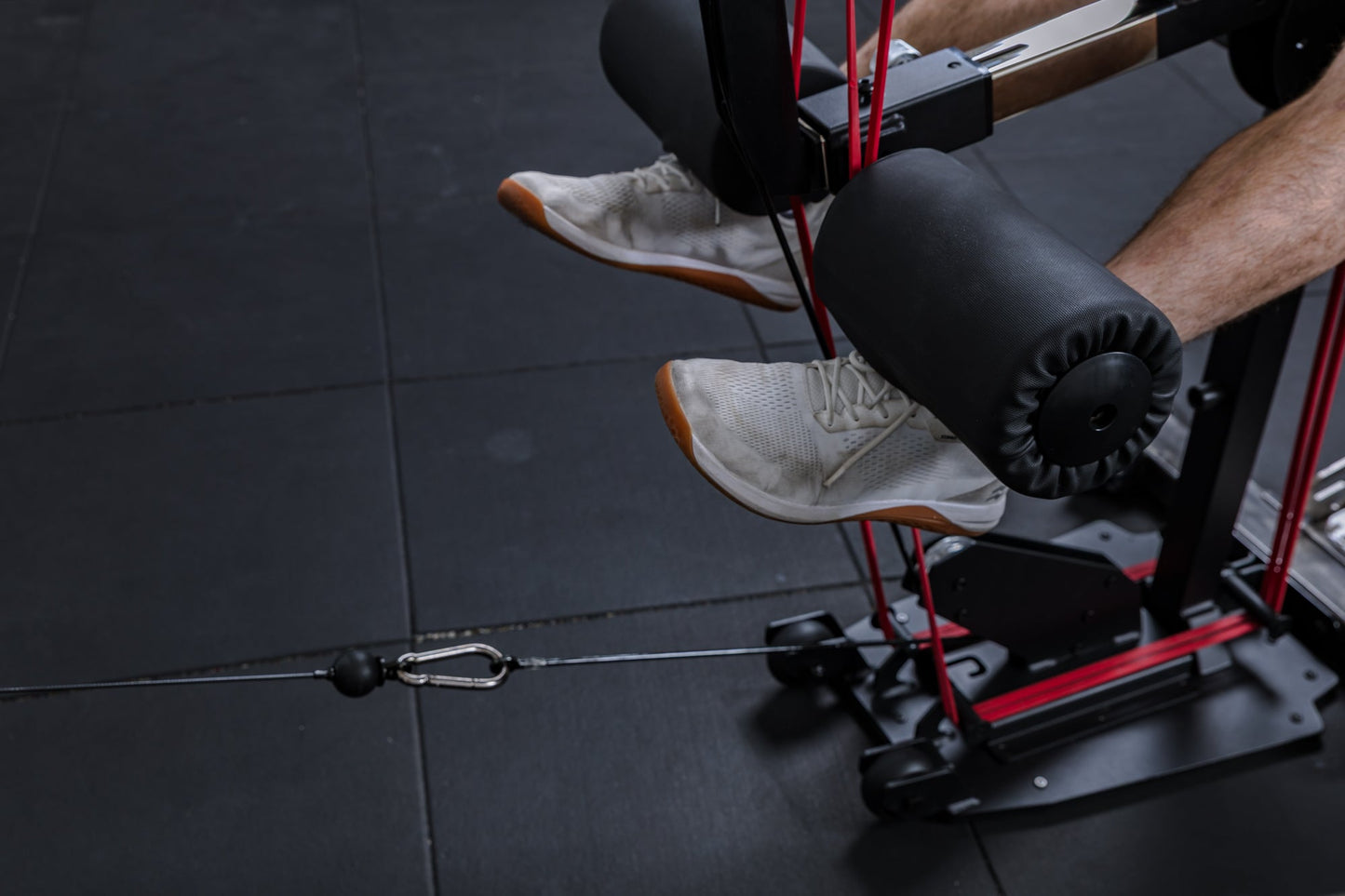

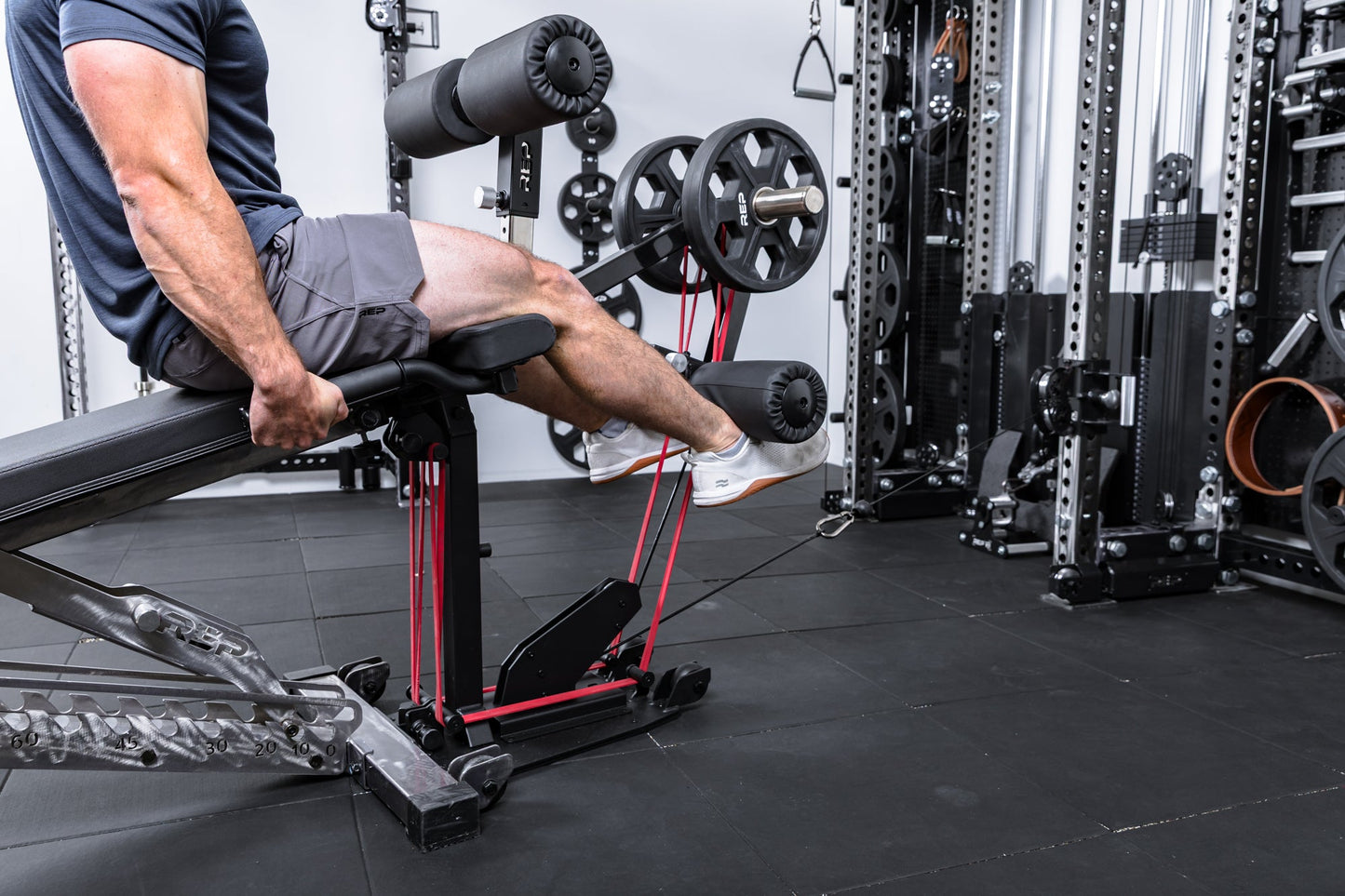

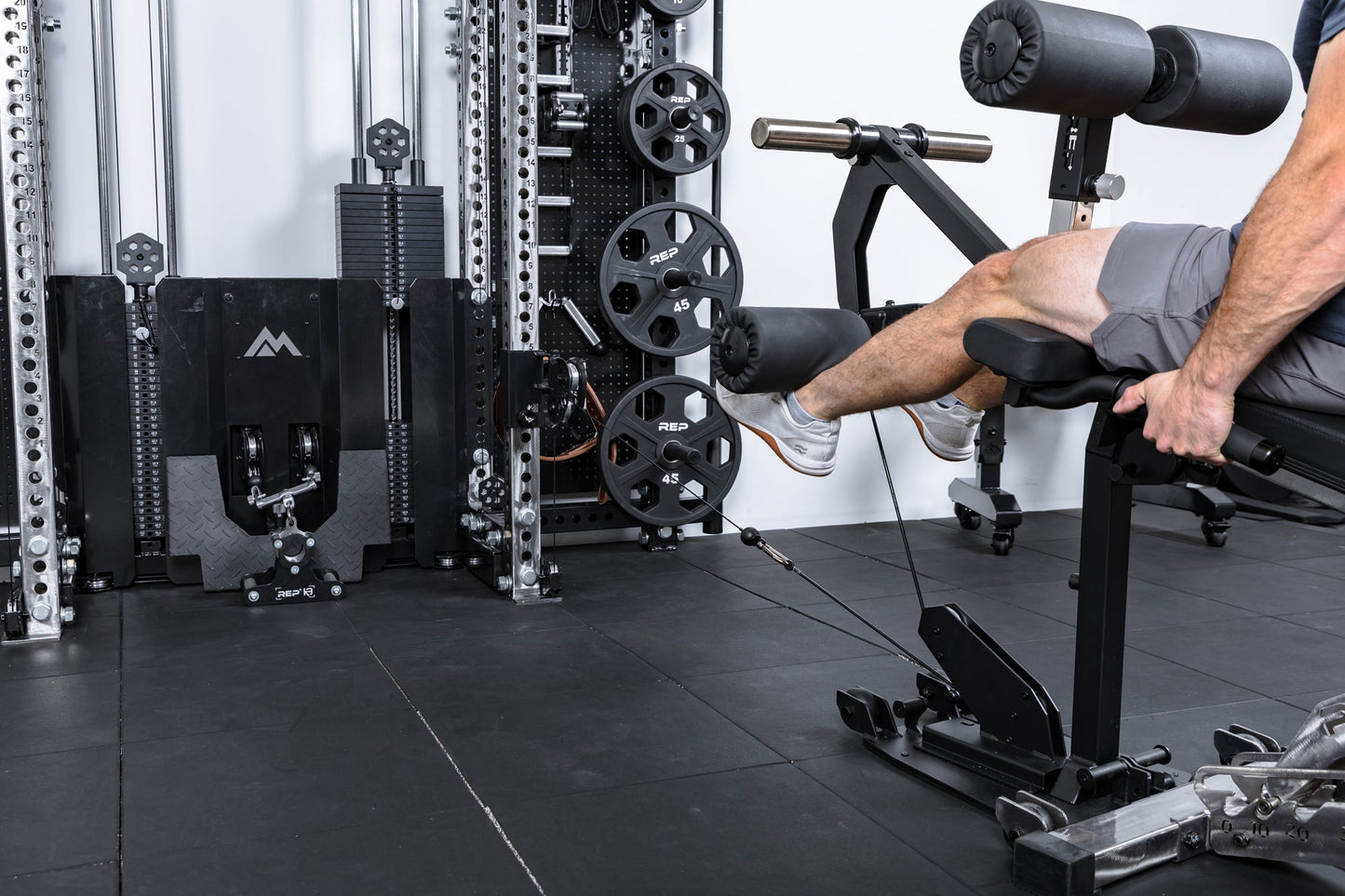

The Leg Extension & Leg Curl Bench Attachment has an optional Cable Kit that allows you to connect your attachment directly to any cable machine in addition to the built in weight horns.

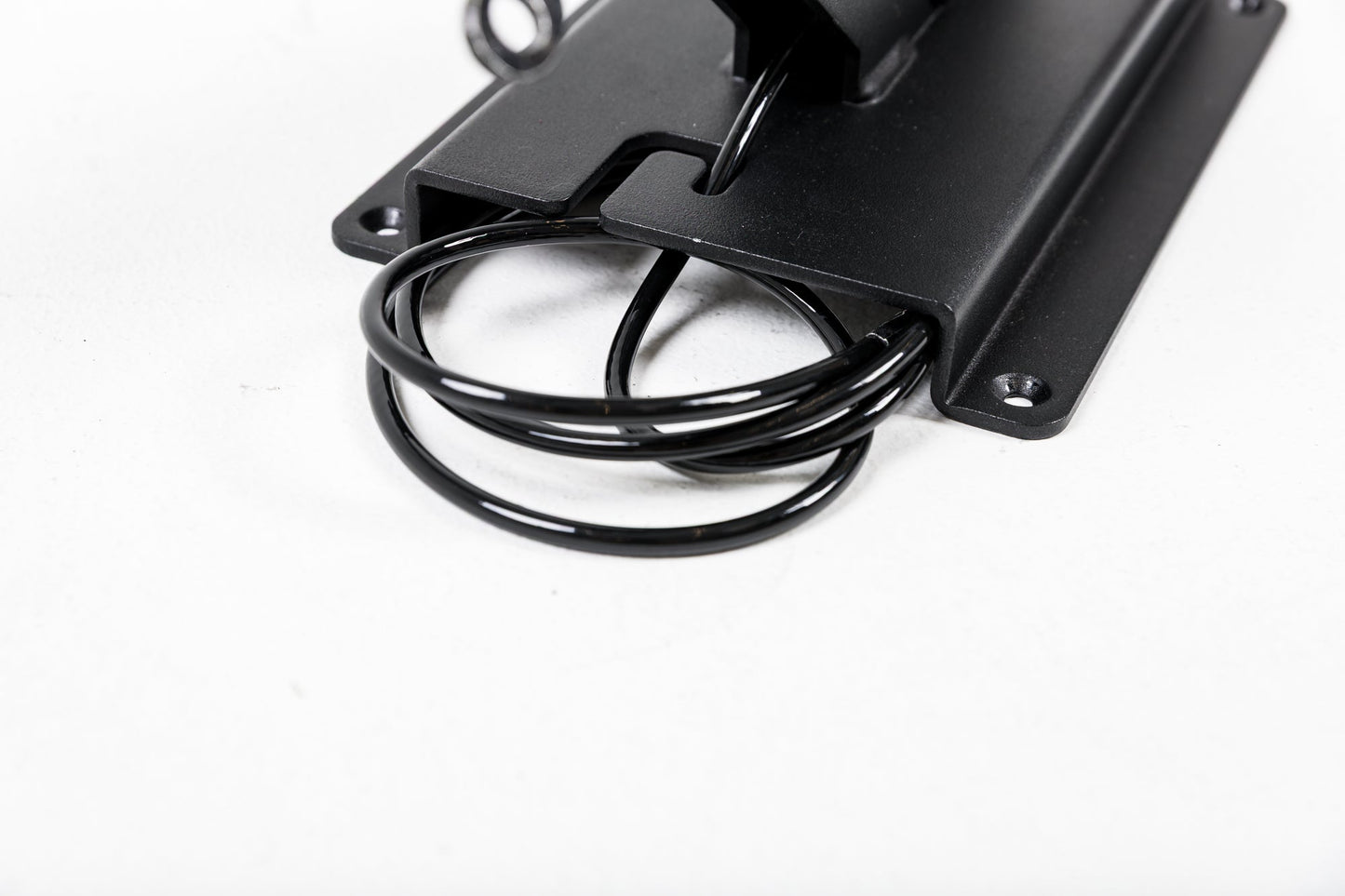

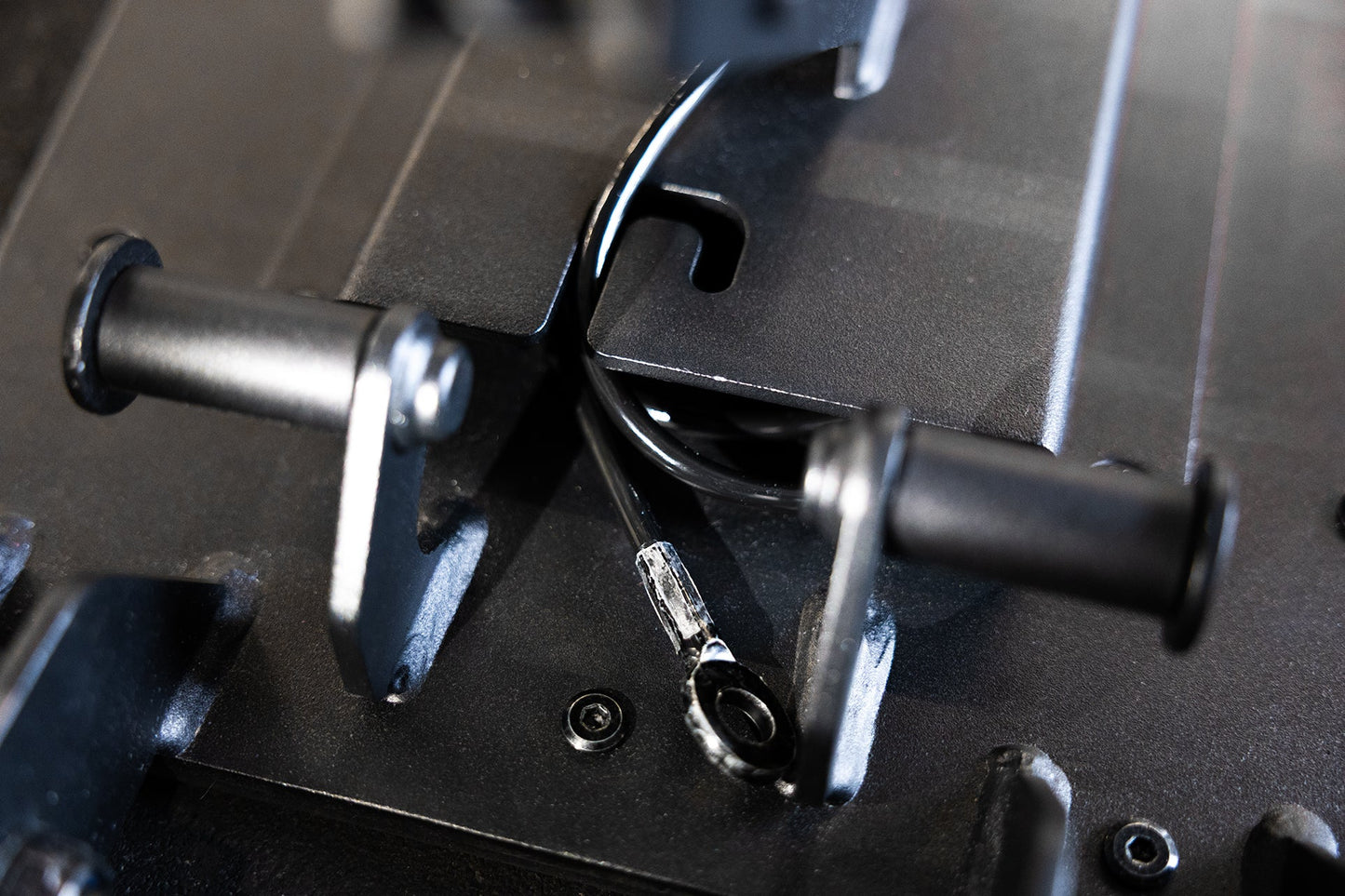

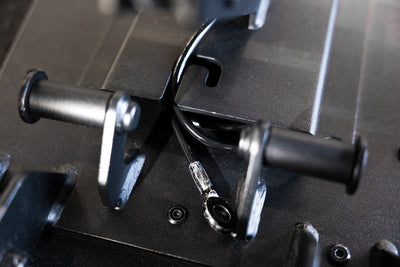

Disconnect the top cable attachment point when using only weight plates and/or resistance bands and storing the coiled cable. This prevents the machine from pulling on the coiled cable and causing it to jam.

Considering you can only mount a Smith machine on the inside of your rack with a cable machine, the cable trolleys are still accessible and can be attached via the cable connection kit.

Yes. You can make sizing adjustments while the cable machine is attached.

Yes. The cable attachment for the Leg Extension & Leg Curl Bench Attachment can be found here.

Yes. Adapters for the the REP® Nighthawk™ - Adjustable Bench, BlackWing™ Adjustable Bench, and ZeroGap® - AB-5000 Adjustable Bench are available for purchase here.

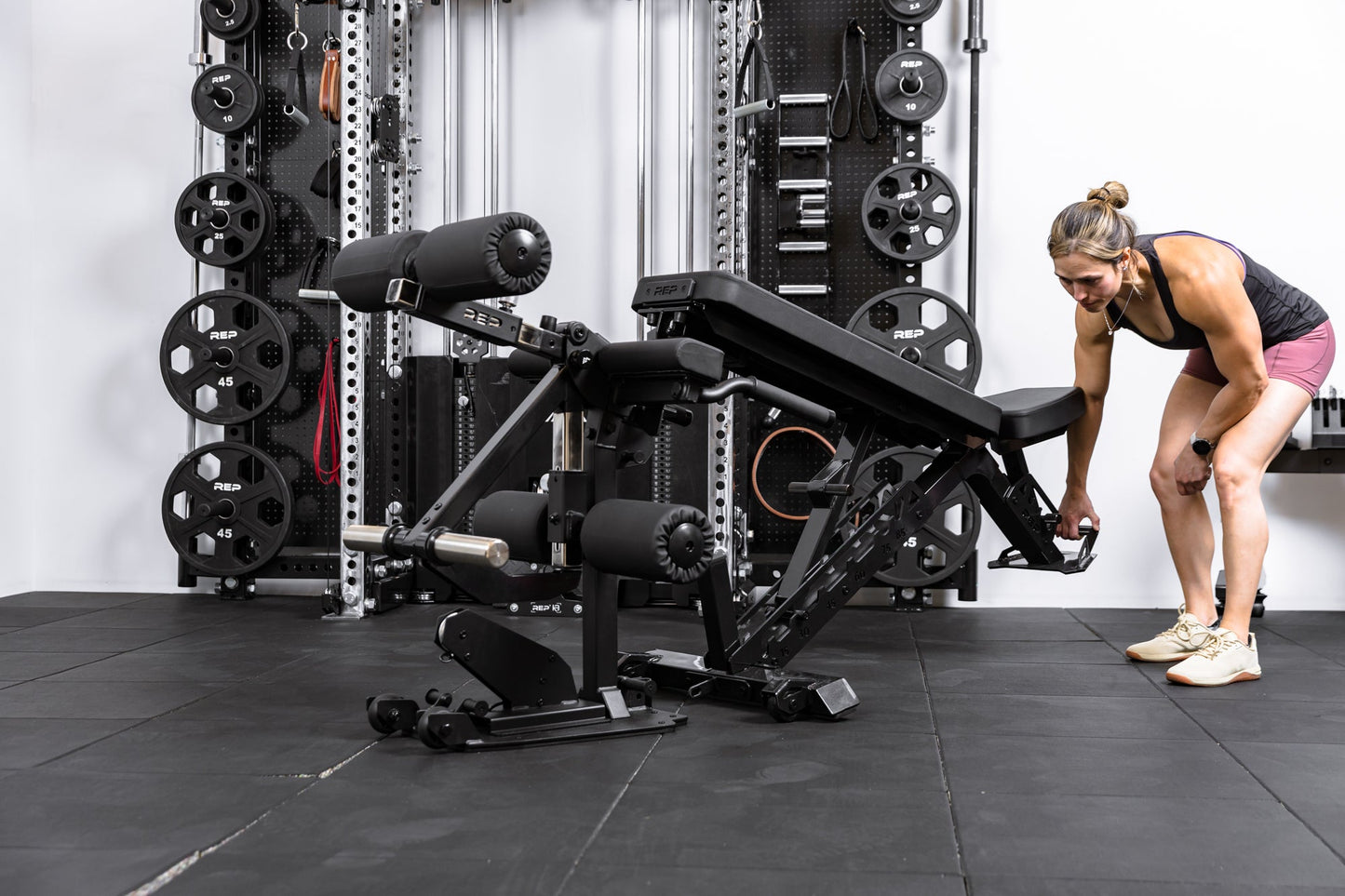

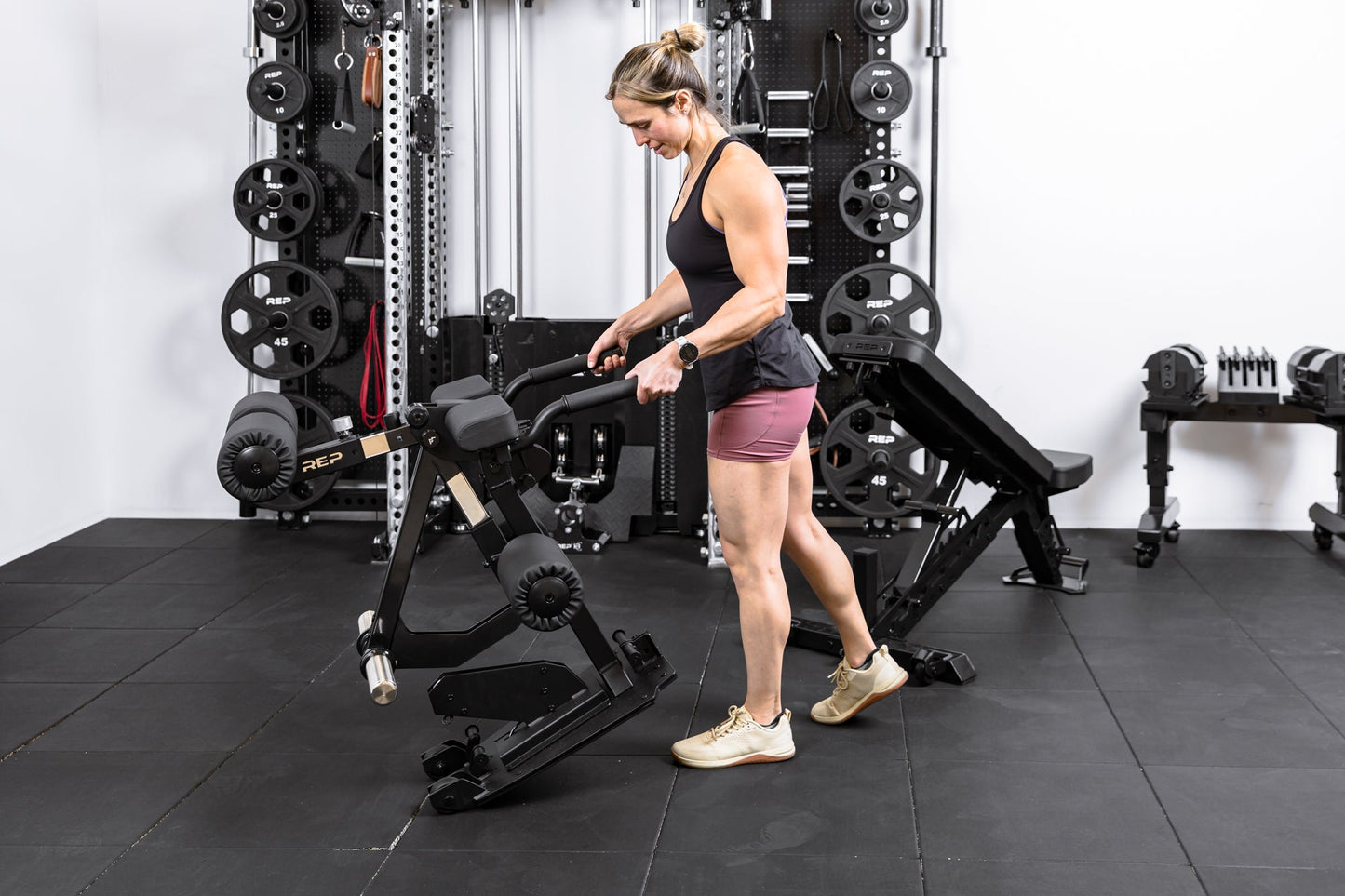

The unit is self supporting, so it can be wheeled to the desired storage space when not in use. While the base plate does allow this attachment to stand with plates loaded, we do recommend removing plates prior to removing this from your bench. This attachment can be stored comfortably with 2 x 45lb plates on it.

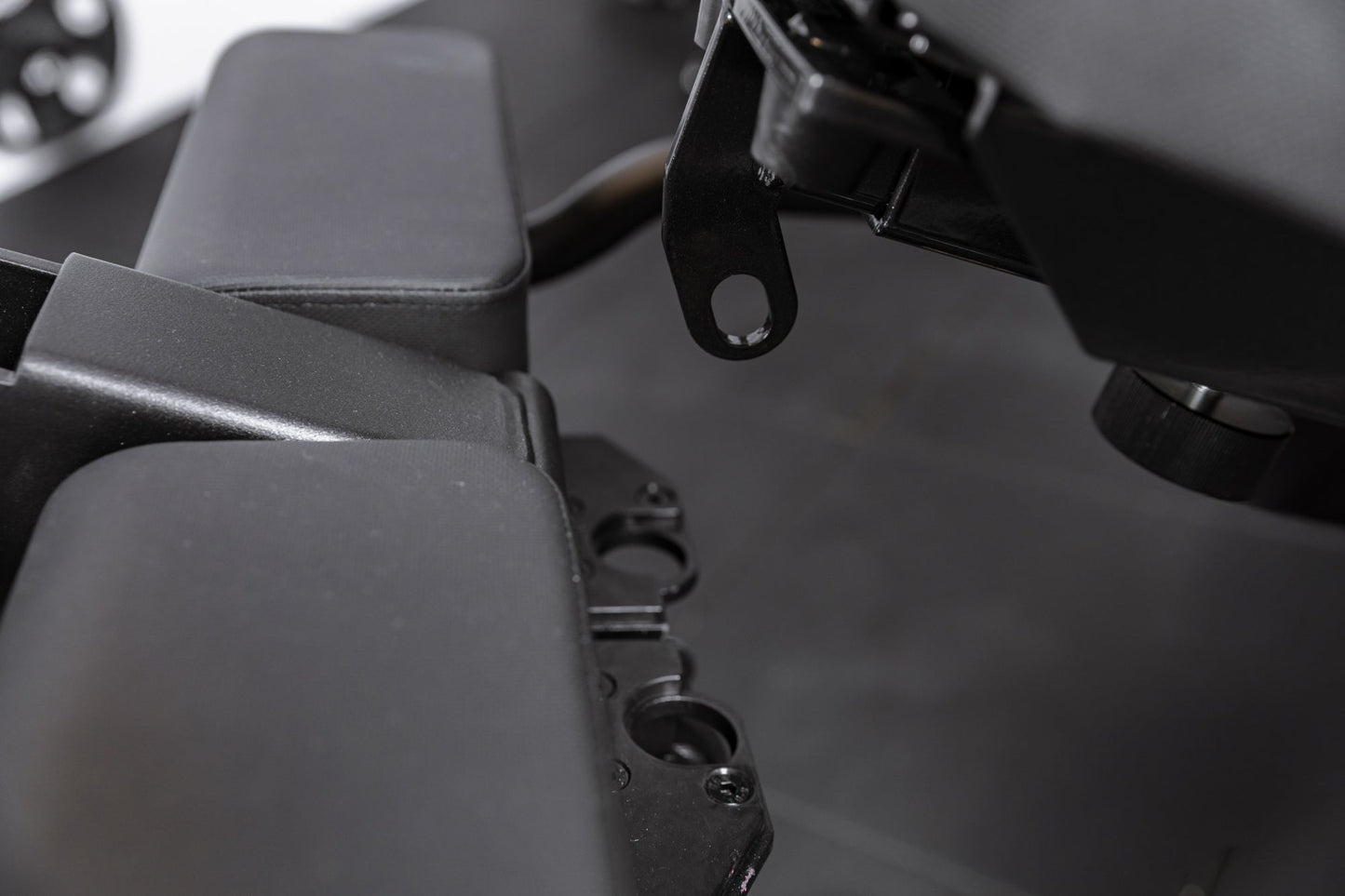

The tube adapter stays attached to your bench, not attached to the Leg Extension & Leg Curl Attachment. It can remain installed or be removed from the bench to allow for use of the Adjustable Bench Leg Roller Attachment as well as future attachments that will use the tube port. The adapter that mounts to the rear foot of the bench remains bolted, but still allows for vertical bench storage. This part will limit incline bench capabilities as it will contact the Ares™ 2.0 foot plate depending on user size.

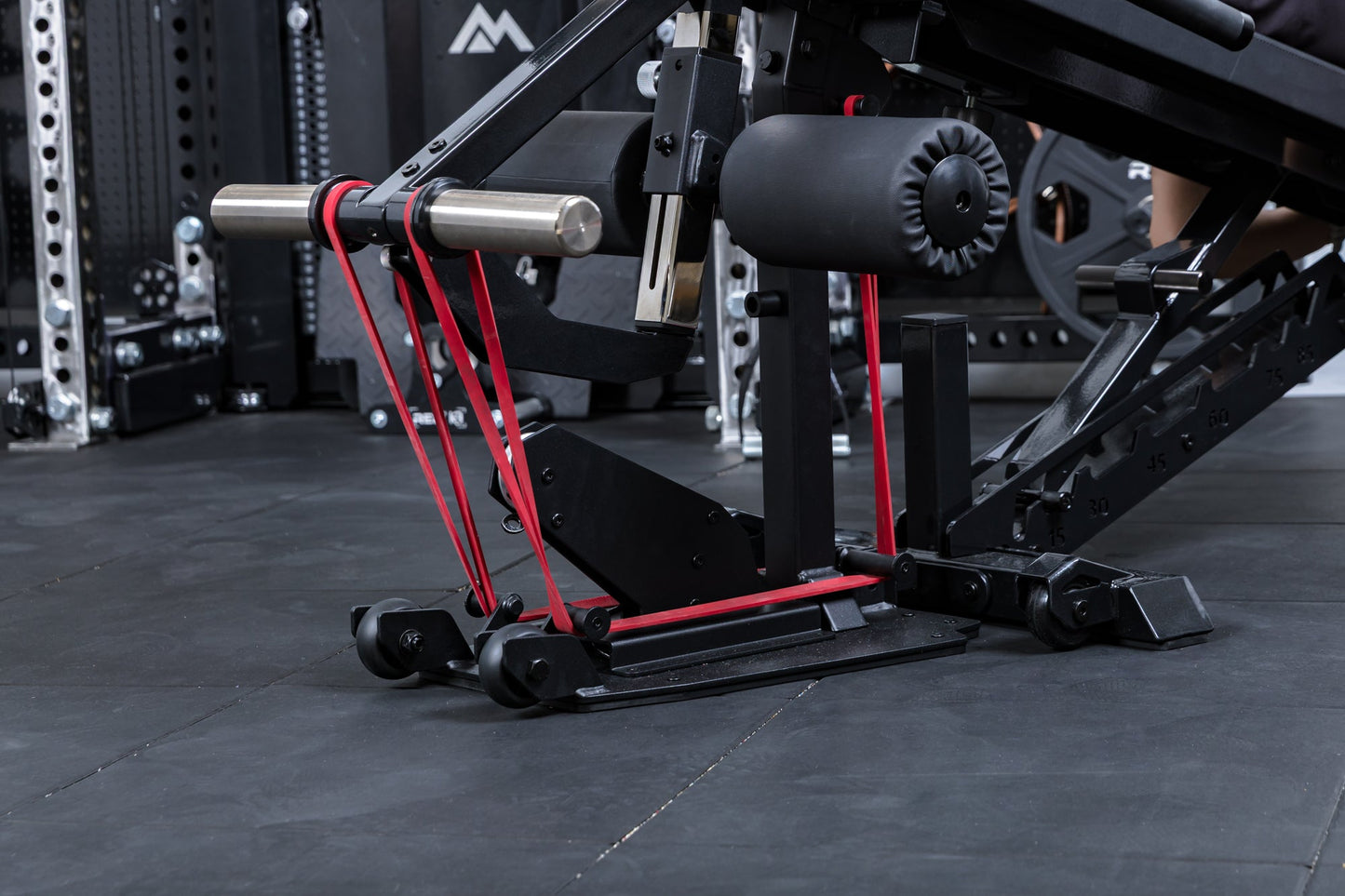

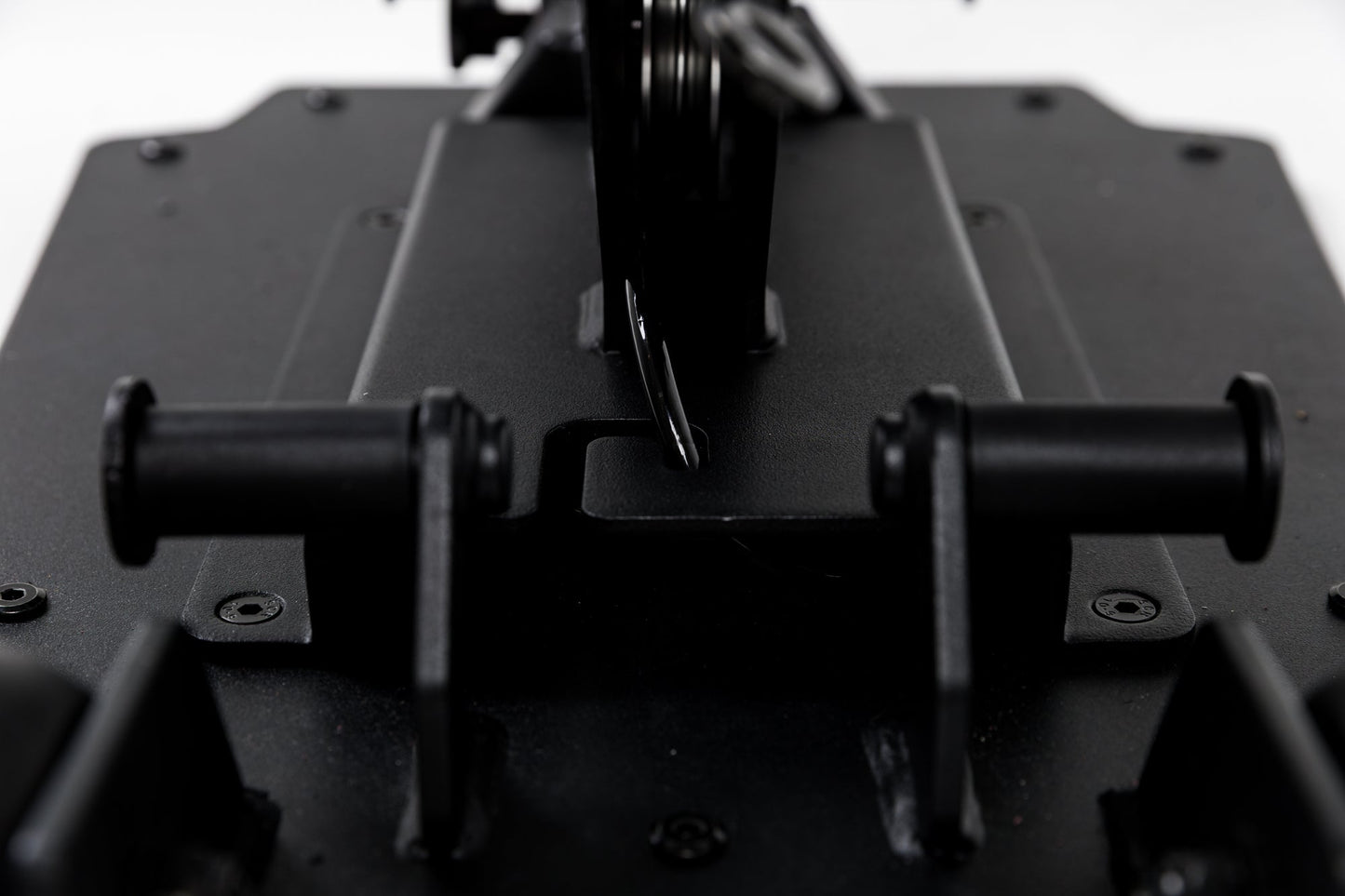

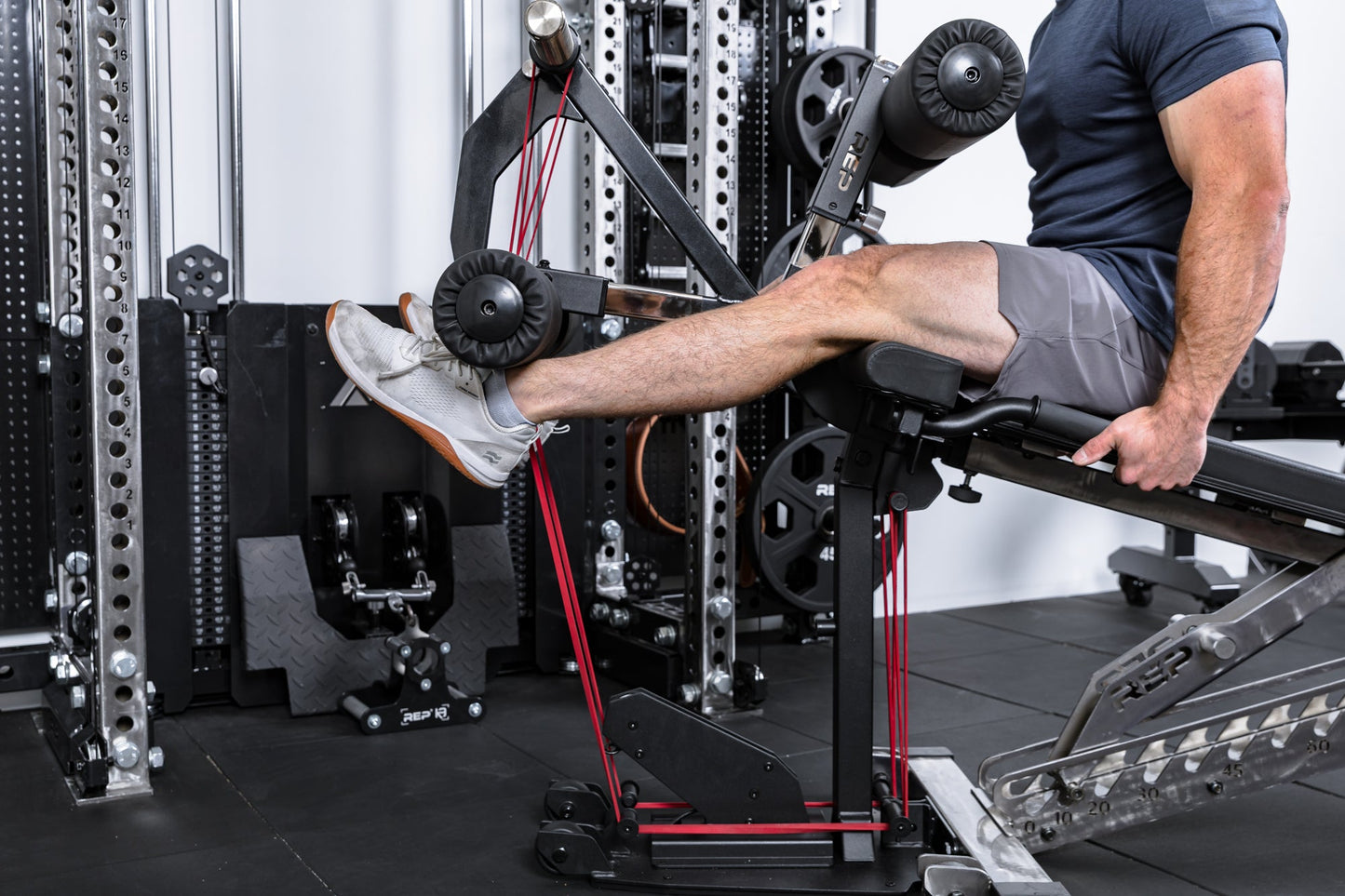

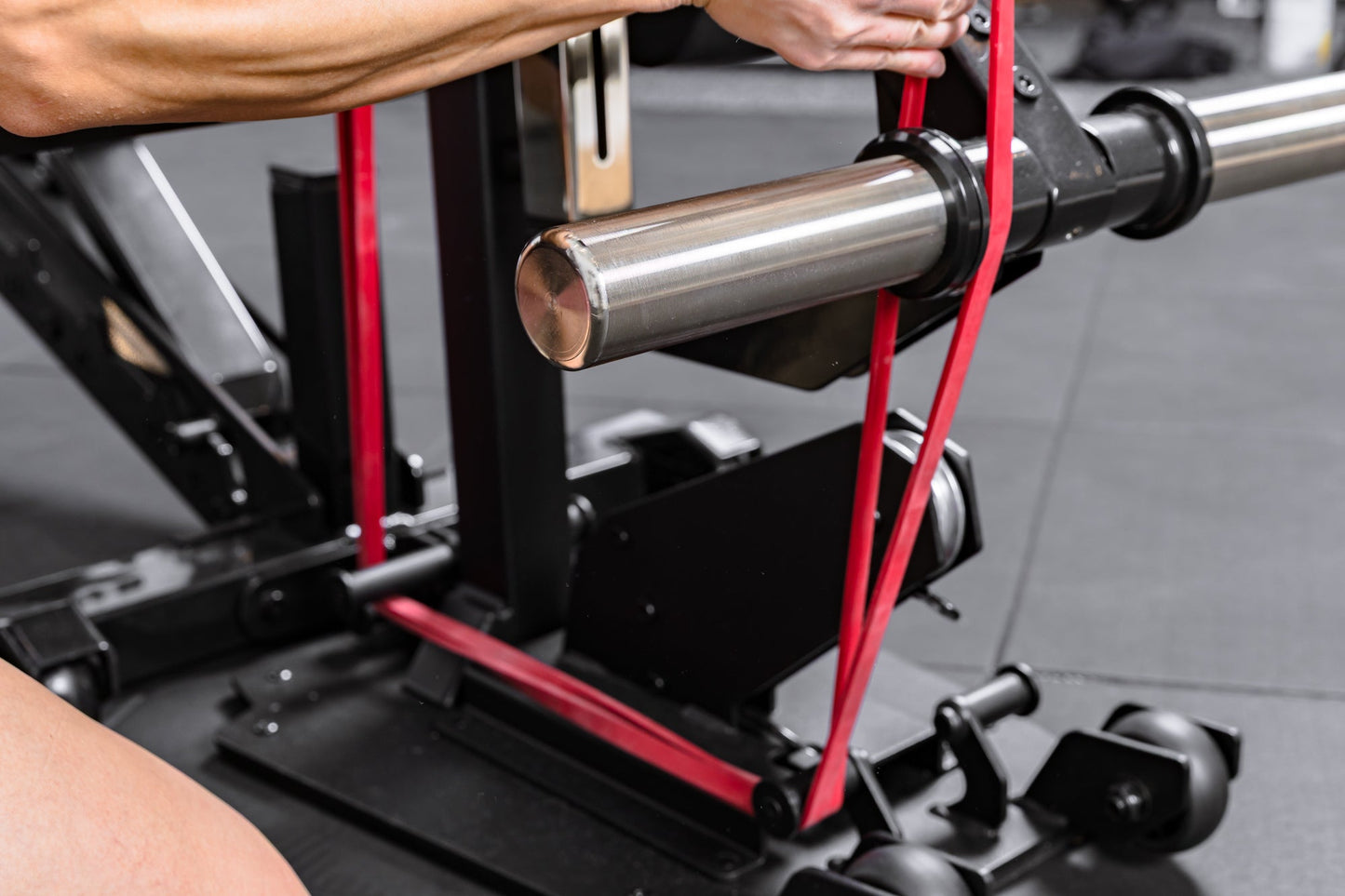

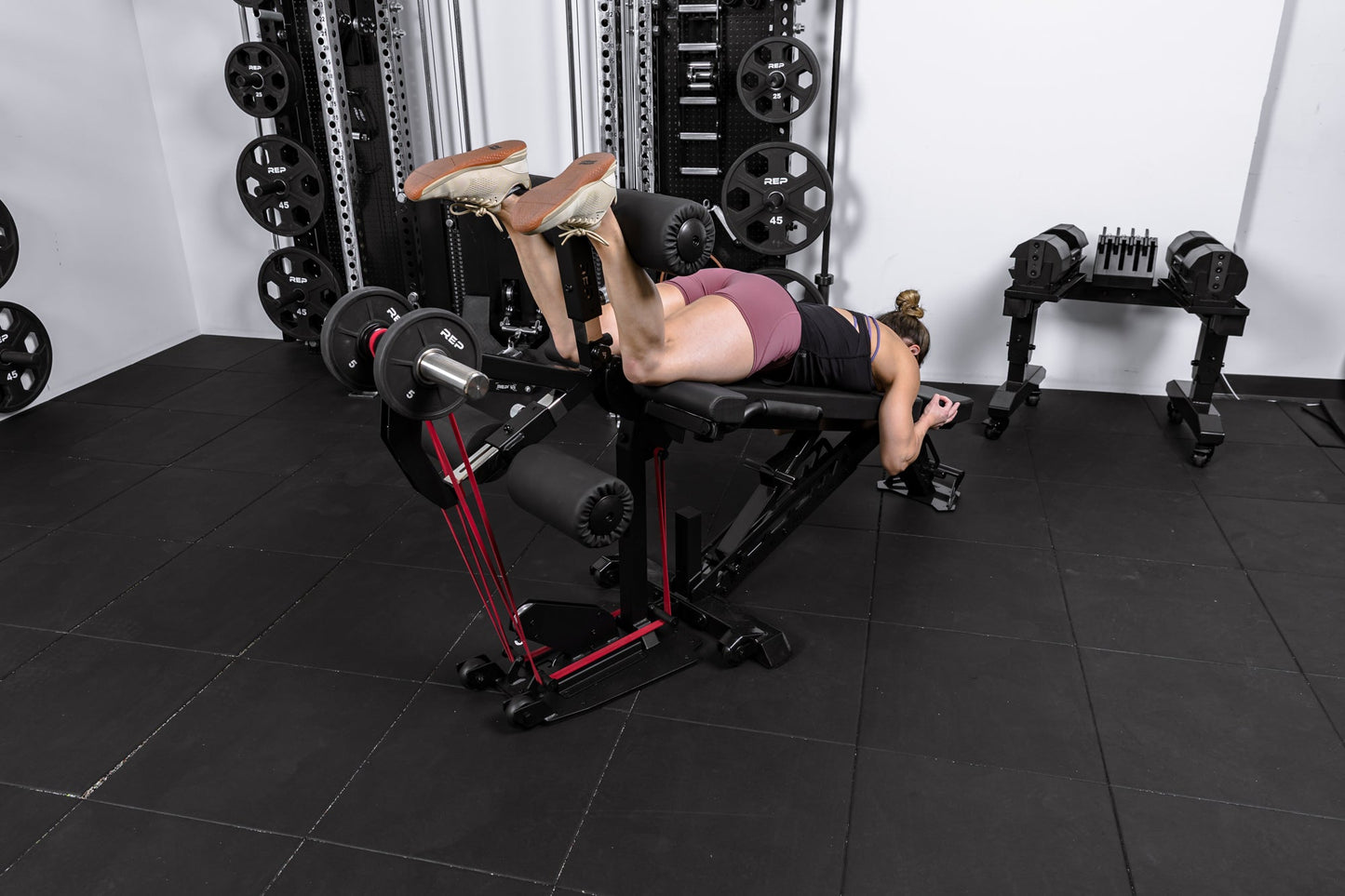

Band resistance: 2 bands are recommended, but you can utililze different bands on each side depending on your desired tension.

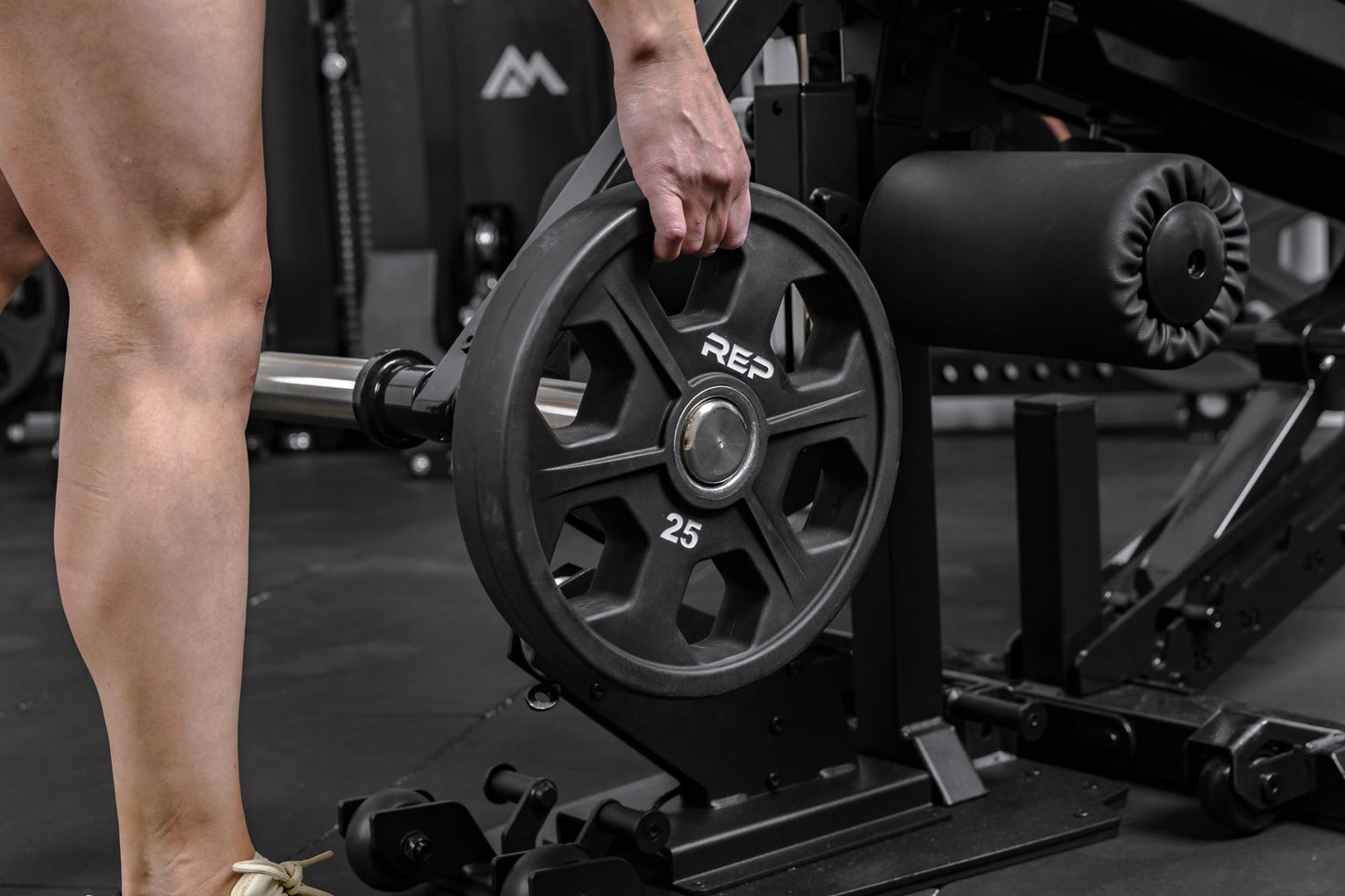

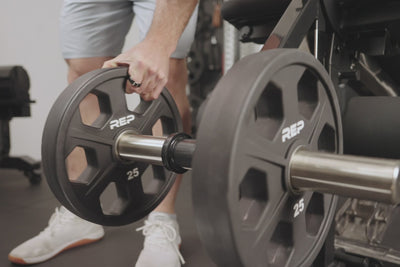

Plate resistance: Yes, plates can be loaded unevenly depending on your desired weight.

If you have the Cable Kit installed: Disconnect the top cable attachment point when using only weight plates and/or resistance bands and storing the coiled cable. This prevents the machine from pulling on the coiled cable and causing it to jam.

This attachment works with the Adonis™ - Cable Tower (on its low row cable), Ares™ 2.0, Athena®, Arcadia™ - Functional Trainer, Arcadia™ Max Functional Trainer, Selectorized Lat Pulldown and Low Row (1000 Series), Selectorized Lat Pulldown & Low Row (4000/5000 Series), and Plate-Loaded Lat Pulldown & Low Row (4000/5000 Series).

Yes, this is ok. The back pad is supported by the adapter at the top of the Leg Extension & Leg Curl Attachment.

Structural welds on attachments and frames have a lifetime warranty*. Upholstery (pads) have a 30-day warranty. Pop-pins, pulleys, bearings, and cables have a 1-year warranty.

Two to three depending on what is purchased. The standard plate loaded unit will ship in two (base, adapter). The cable kit will add an additional package for a total of 3 boxes.
